Specification
Model | CHC VAV Controller |
Dimension(WⅹDⅹH, mm) | 80ⅹ130ⅹ30 |
Face velocity Measurement Range | 0~1 m/s (±0.03 m/s) |
Power | AC 110 / 220V, 50 / 60 Hz |
Current | 0.5A |
Communication Port | RS485 |
Specification
Model | SCHNEIDER ICM500 |
(WⅹDⅹH, mm) | 84ⅹ158ⅹ48 |
Face velocity Measurement Range | 0.1~1 m/s (±0.015 m/s) |
Power | AC 110 / 220V, 50 / 60 Hz, DC 15 V |
Current | 0.12A |
Communication Port | RS232 |
Unit: mm, Tolerance: ±5mm

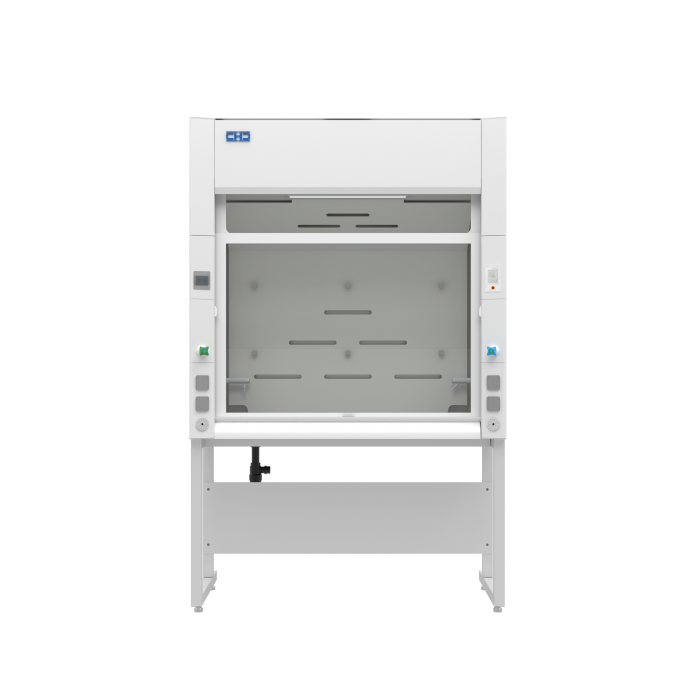

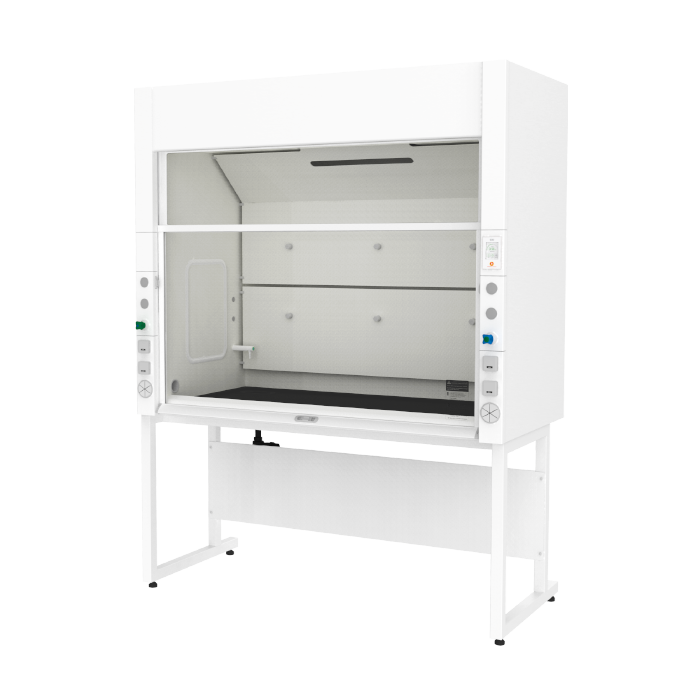

Section | XFL-BA | |||||
---|---|---|---|---|---|---|
120 | 150 | 180 | 210 | 240 | ||
Size (W×D×H, mm) | Outer | 1200×850×2365 | 1500×850×2365 | 1800×850×2365 | 2100×850×2365 | 2400×850×2365 |
Inner | 995×675×1200 | 1295×675×1200 | 1595×675×1200 | 1895×675×1200 | 2195×675×1200 | |
Material | Outer | Steel Plate (Epoxy Powder Coated) | ||||
Inner | Phenolic Laminate | |||||

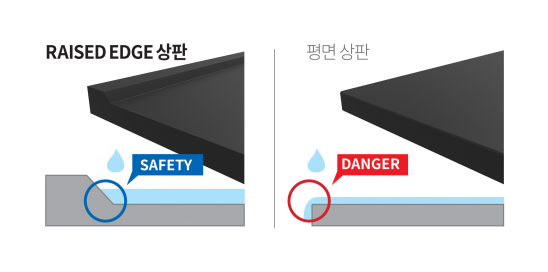

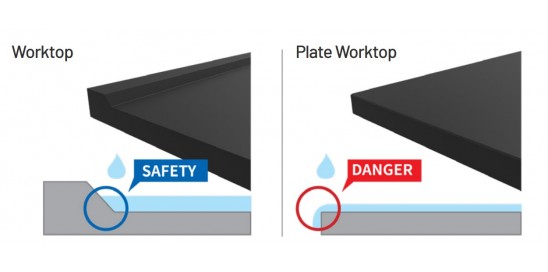

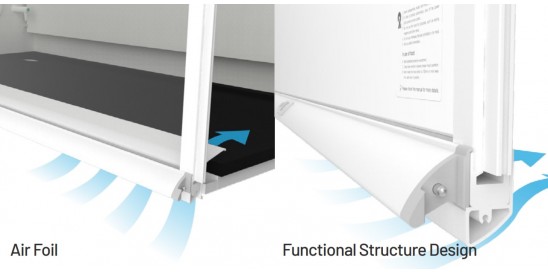

Worktop | Epoxy 25 mm (option : Phenolic Laminate, STS, PVC, P.P.) | |||||
Sash | Tempered Glass 5 mm | |||||
Frame | Steel Pipe (Epoxy Powder Coated) | |||||

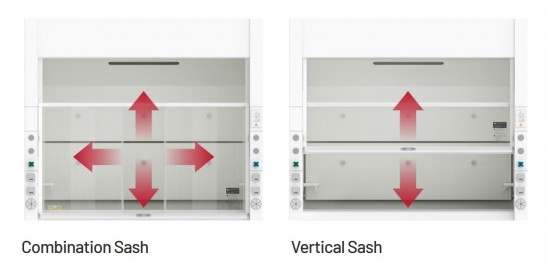

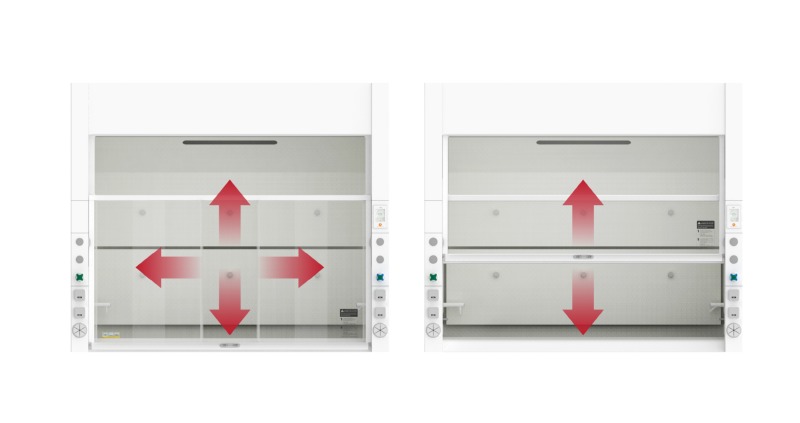

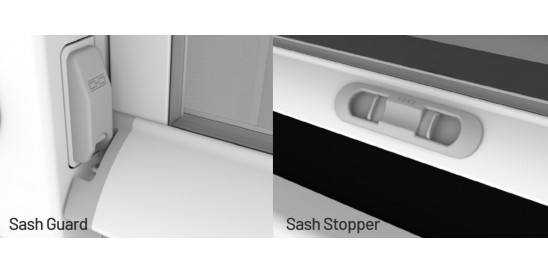

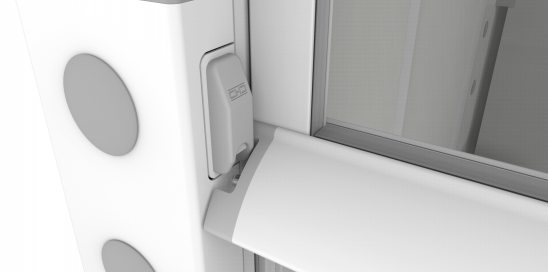

Types of Sashes | Vertical sash (Option: Combination Sash) | |||||
Cup Sink | 1 EA (Option: 2 EA) | |||||
Power Socket | 220V×4EA (Left, Right 2EA each) | |||||
Lamp (LED) | 25 W×1 EA | 25 W×2 EA | ||||

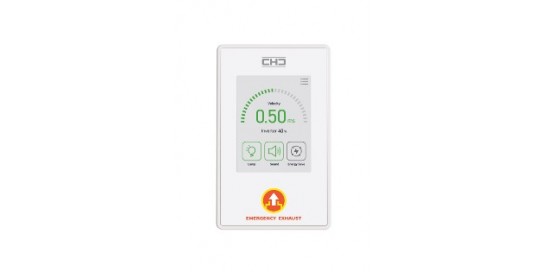

Controller | CHC Monitor (Option: CHC VAV Contoller, Schneider Contoller, ON/OFF Switch) | |||||

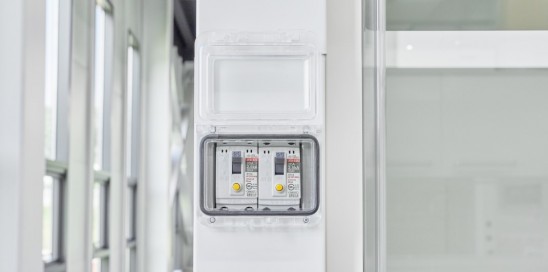

Earth Leakage Breaker | Ceiling Distribution Box (including Terminal Block and Earth Leakage Breaker)(option : Front Earth Leakage Breaker) | |||||

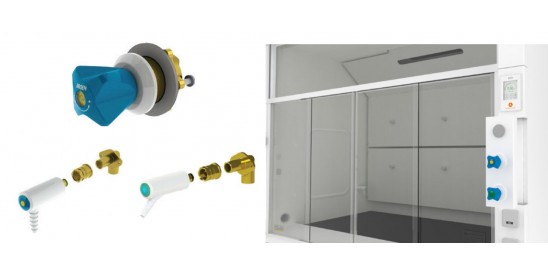

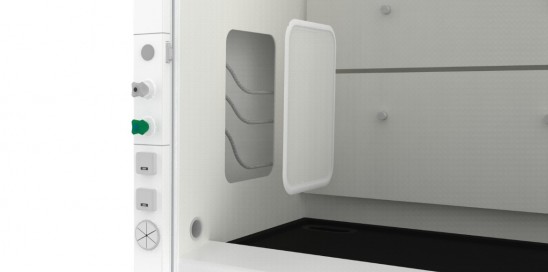

Valves | Water×1EA, N₂×1EA (Option: Additional Valve 4EA) | |||||

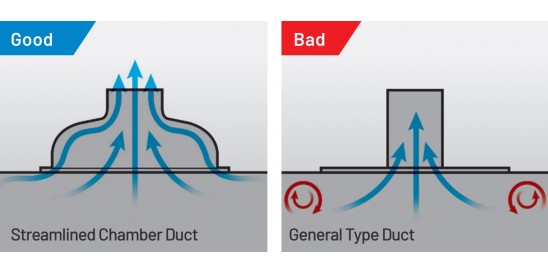

Exhaust Port | P.P. Ø250 (option : P.P. Ø300 / PVC Ø200, Ø250, Ø300) | |||||
Power Consumption | 25 W | 50 W | ||||
Options | Sash Safety Film | |||||

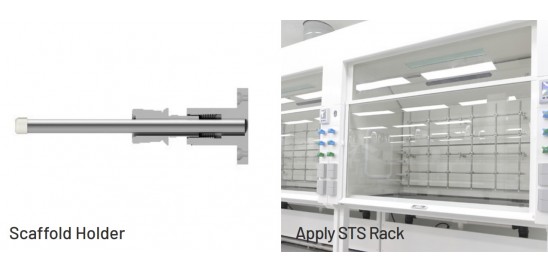

STS RACK | ||||||

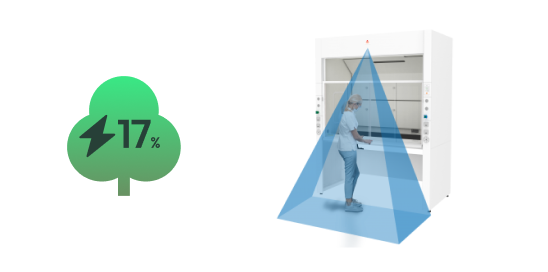

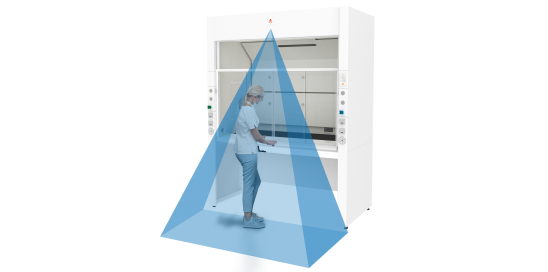

PIR sensor (Auto Sash) | ||||||

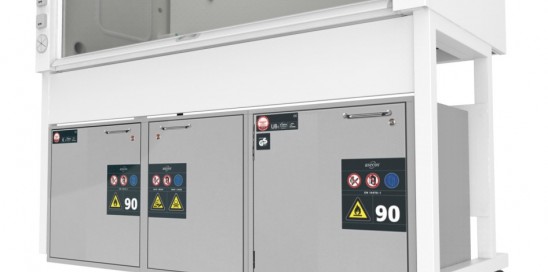

Lower Frame Built-in Cabinet | ||||||
Blower |
